Product Details:
Payment & Shipping Terms:
|
| Materials: | Aluminum Purity>99.7% | Tube Volume: | 3ml - 180ml |
|---|---|---|---|
| Diameter: | 13.5mm~40mm | Tube Length: | 55mm-200mm |
| Internal Lacquer: | Expoxy Phenolic Resin, Color Can Be Gold,Clear,Silver,white Color | Screw Thread: | M7,M9,M11,M15 |
| Highlight: | pharmaceutical aluminum tubes,aluminum squeeze tube packaging |
||

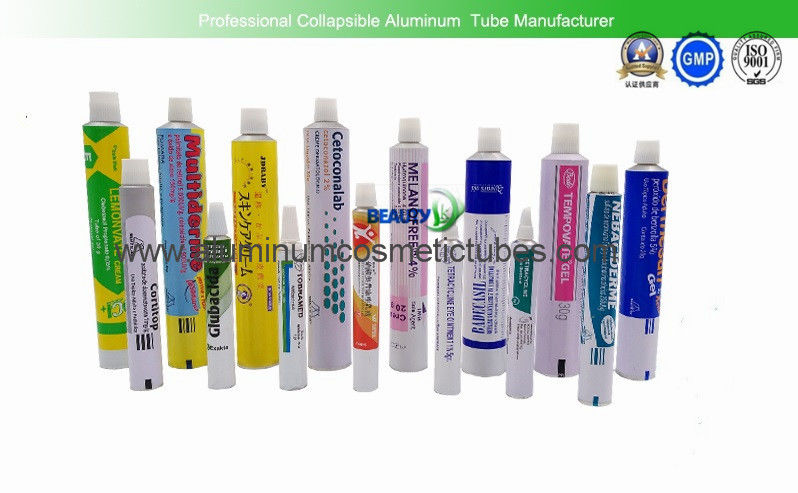

Empty Aluminum Collapsible Tubes for Pharmaceutical Packaging Medical Cream Eye Onitment
1. Detailed Description of Aluminum CollapsibleTubes
| Name | Medical cream / Ointment Packaging tube |
| Material | Aluminum Purity>99.7%. |
| Diameter | 13.5mm to 40mm (13.5/16/19/22/25/28/30/32/35/38/40mm) |
| Tube Length | 55-210mm, length can be customized based on different diameters |
| Tube Volume | 3ml - 200ml |
| Internal Lacquer color | gold/silver/white colors, to keep the good nature of the cream etc. inside |
| Roller Coating | white or other colors as your requests, to achieve the perfect printing effect |
| Printing | offset printing/silk screen printing/hot stamping gold or silver, or labeling sticker |
| Bottom Latex | need or not, just depends on your requirements |
| Nozzle Design | with membrane, open end, elongate nozzle, based on the customers' requirements |
| Caps | Screw caps or Standup(top-slip)caps,long nozzle cap,mushroom cap,flip top cap,various designs of caps for options |
| Screw Thread | M7,M9,M11,M15 |
| Tube Shoulder | flat, brushed, polished, ringed or lacquered |
2. Empty Tubes' Dimension
| Collapsible Aluminum Tubes Specification Sheet | ||
| Tube Size Diameter | Length Range | Capacity Range |
| 12.5 | 55-75mm | 3-7ml |
| 13.5 | 60-80mm | 3-10ml |
| 16 | 70-110mm | 4-14ml |
| 19 | 70-110mm | 8-20ml |
| 22 | 80-120mm | 9-30ml |
| 25 | 100-160mm | 30-50ml |
| 28 | 100-175mm | 40-80ml |
| 30 | 120-180mm | 50-90ml |
| 32 | 125-190mm | 70-110ml |
| 35 | 125-190mm | 80-180ml |
| 38 | 150-190mm | 90-190ml |
| 40 | 155-210mm | 100-200ml |
| Please Note: The exact capacity varies depending on product formulation and filling machinery. Test Filling of the actual product is suggested to determine the appropriate tube dimension. | ||
3. Empty Optional Nozzle
![]()

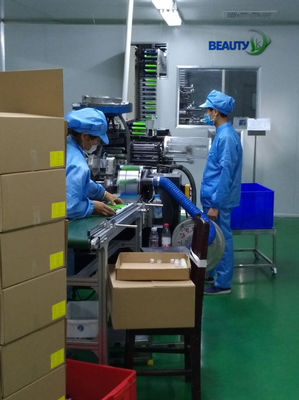

4. Quality control:
![]()
