Pigment Paint Empty Aluminum Tubes 200ml , Recyclable Aluminum Squeeze Tubes

Certification
Good quality Plastic Cosmetic Tubes for sales
Good quality Plastic Cosmetic Tubes for sales
I'm Online Chat Now

Pigment Paint Empty Aluminum Tubes 200ml , Recyclable Aluminum Squeeze Tubes

China Pigment Paint Empty Aluminum Tubes 200ml  , Recyclable Aluminum Squeeze Tubes supplier
Pigment Paint Empty Aluminum Tubes 200ml  , Recyclable Aluminum Squeeze Tubes supplier Pigment Paint Empty Aluminum Tubes 200ml  , Recyclable Aluminum Squeeze Tubes supplier

Large Image :  Pigment Paint Empty Aluminum Tubes 200ml , Recyclable Aluminum Squeeze Tubes

Product Details:

Place of Origin: China
Brand Name: Beauty Sky, ODM, OEM,
Certification: SGS,ISO
Model Number: Pigment tubes

Payment & Shipping Terms:

Minimum Order Quantity: 50000pcs
Price: 0.015-0.25 usd/pcs
Packaging Details: Polybag + Cartons
Delivery Time: 15-30days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10,000,000 pcs per month
Contact Now
Detailed Product Description
Materials: Aluminum Purity>99.7% Tube Volume: 200ml, 5ml - 200ml
Diameter: 40mm,13.5mm~40mm Tube Length: 200mm, 55mm-210mm
Internal Lacquer: Expoxy Phenolic Resin, Color Can Be Gold,Clear,Silver,white Color Screw Thread: M19, M7-M19

Pigment Paints Packaging Empty Aluminum Collapsible Tubes



1. Our production environment:

Pigment Paint Empty Aluminum Tubes 200ml  , Recyclable Aluminum Squeeze Tubes



2. Products' Description:
* Product Name: Empty aluminum collapsible Tubes for pigment

* Cap: Normal screw cap or round cap for open tip tube

* Aluminum: aluminum purity>99.7% from Austria
* Dimension: diameter from 13.5mm to 40mm, length can be customized
* Nozzle Design: with membrane, open end, elongate nozzle, based on the customers' requirements
* Screw Thread: M11, M7-M15

* Tube Shoulder: flat, brushed, polished, ringed or lacquered

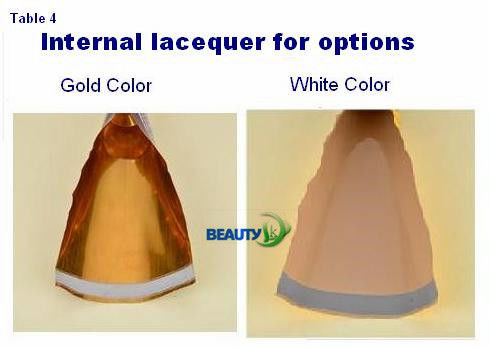

* Internal Lacquer: gold/silver/white colors, to keep the good nature of the cream etc. inside
* Roller Coating: white or other colors as your requests, to achieve the perfect printing effects
* Printing: offset printing/silk screen printing/hot stamping gold or silver
* Bottom Latex: need or not, just depends on your requirements



2. Dimension of Collapsible Aluminum Tubes



Pigment Paint Empty Aluminum Tubes 200ml  , Recyclable Aluminum Squeeze Tubes





Filling volume Diameter Tube length d1--Thread
ml mm mm M7 M9 M11 M15
    Pigment Paint Empty Aluminum Tubes 200ml  , Recyclable Aluminum Squeeze Tubes Pigment Paint Empty Aluminum Tubes 200ml  , Recyclable Aluminum Squeeze Tubes Pigment Paint Empty Aluminum Tubes 200ml  , Recyclable Aluminum Squeeze Tubes d2--Diameter of orifice
   d Φ3.6 Φ5.6 Φ6.8 Φ10
4 13.5 47 51 55 * *
5 13.5 55 59 63 * *
6 13.5 63 65 69 * *
7 13.5 71 75   * *
8 16   65 69 * *
9 16 67 71 75 * *
10 16 73 77 81 * *
12 16 84 88 92 * *
  19 65 70 75 * * *
15 19 77 82 87 * * *
20 19 95 100 106 * * *
25 19 114 119 125 * * *
  22 93 98 104   * * *
  25 77 82 88   * * *
30 22 107 112 118   * * *
  25 89 94 100   * * *
40 25 111 116 122   * * *
  28 94 99 105   * * *
50 25 133 138 144   * * *
  28 112 117 123   * * *
  30 101 106 112   * * *
  32   96 102   * * *
75 28 156 161 167   * * *
  30 139 144 150   * * *
  32 126 131 137   * * *
  35 110 115 121   * * *
100 32 160 165 171   * * *
  35 139 144 150   * * *
125 32 189 194 200   * * *
  35 167 172 178   * * *
150 35 189 194 200   * * *
  38 180 185 191     * *
200 40 189 194 200     * *
Please Note: The exact capacity varies depending on product formulation and filling machinery. Test Filling of the actual product is suggested to determine the appropriate tube dimension.
